As the automobile manufacturing industry develops towards automation and intelligence, auto parts manufacturers have increasingly higher requirements for coating quality, production efficiency and product consistency.
As one of the key components of automobiles, brake discs not only need to meet stable mechanical properties, but their surface coating also plays an important role in anti-corrosion protection. Therefore, how to achieve stable and efficient automated painting has become a concern for many auto parts manufacturing companies.
The automatic automobile brake disc coating production line realizes the continuity and automation of the brake disc coating process through automatic transportation, pre-treatment, automatic spraying, drying and solidification, cooling and detection, effectively improving production efficiency and product quality.
In the traditional production model, some processes still rely on manual operations, which are prone to positioning errors and quality fluctuations.
Frequently asked questions include:
Manual loading and unloading efficiency is low
There is an error in the positioning of the workpiece
Insufficient spray uniformity
Long replacement time for products with different specifications
Labor costs continue to increase
Product quality traceability is difficult
For high-volume auto parts manufacturers, these problems will further affect production rhythm and comprehensive manufacturing costs.
A complete automatic coating production line for automobile brake discs needs to be designed overall based on product structure, production capacity, coating system and process requirements.
Typical process flow includes:
Automatic feeding → Pretreatment → Water washing → Surface film formation → Drying → Automatic spraying → Leveling → Drying and solidification → Cooling → Detection → Automatic unloading
Through automatic linkage between different equipment, manual participation can be reduced and each process can maintain a stable production rhythm.
For brake discs of different specifications and models, traditional manual positioning is prone to errors.

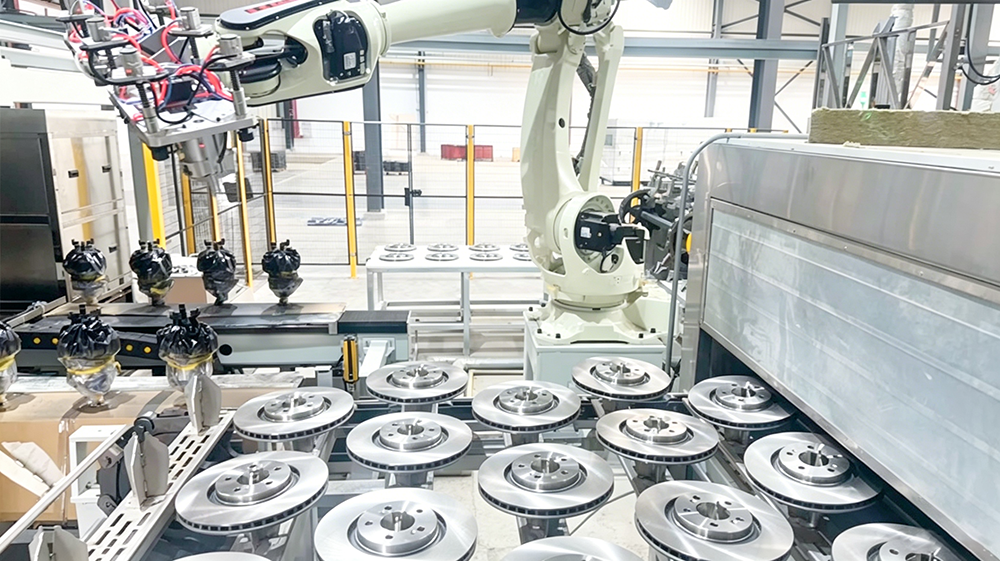

By introducing a 3D vision system and a six-axis robot , the position and contour of the brake disc can be automatically identified, enabling adaptive positioning and flexible grasping.
At the same time, production programs for different product models can be pre-stored in the control system.
When product specifications change, quick changeover can be completed simply by calling the corresponding program, thereby reducing manual adjustment time.
Brake discs must undergo adequate surface treatment before entering the spraying process.
The pre-treatment system can remove oil, dust, rust and other contaminants on the surface of the workpiece through degreasing, water washing, film forming, drying and other processes, providing a stable foundation for subsequent coatings.
Good pre-treatment not only helps to improve coating adhesion, but also further improves the anti-corrosion performance and salt spray resistance of the product.
The automatic spraying system can set spraying parameters according to the brake disc structure and coating requirements to achieve stable coating coverage.
After the spraying is completed, the workpiece enters the drying and curing system.
Through reasonable control of temperature, time and hot air circulation, the coating can achieve a stable curing effect, thereby ensuring the consistency of product coating quality.
Modern automotive parts painting production not only needs to pay attention to product quality, but also needs to meet environmental protection production requirements.
Therefore, when designing a car brake disc coating line, you can plan simultaneously:
VOC exhaust gas treatment system
Paint mist treatment system
wastewater treatment system
ventilation system
Drying energy saving system
Environmental protection equipment linkage control
Through the overall planning of the main production line and environmental protection system, the cost of later transformation can be reduced.
Changzhou Jiemaite specializes in automatic coating production lines for automobile brake discs and surface treatment equipment for automobile parts . It provides non-standard customization according to customer product structure, production rhythm, production capacity and coating process.
From process design, pre-treatment, automatic spraying, robot loading and unloading, drying and curing, intelligent transportation to environmental protection , we provide a complete one-stop solution.
If you are planning a new automatic coating production line for automobile brake discs , or the existing production line has problems such as low efficiency, high labor costs, slow changeover, and unstable coating quality, please contact Geoomet.
Provide your product size, production capacity and process requirements, and we will provide you with targeted automated coating solutions.
